Isuzu Euro IV Standard Diesel Engine 2 to 3 ton Light Truck/Lorry Truck/Cargo Truck

Isuzu Euro IV Standard Diesel Engine 2 to 3 ton Light Truck/Lorry Truck/Cargo Truck

1. Applies to transport cargo less than 3 ton;

2. Also be used for small size and short distance transportation.

1. Turbocharging engines;

2. Exceptional fuel efficiency;

3. Lower CO₂ emissions;

4. Mature model can assure that you use longer time.

1. Isuzu chassis with stronger frame;

2. Less fuel consuming but longer driving;

3. Isuzu special transmission;

4. Isuzu engine with powerful performance.

Chassis parameters
Chassis model		QL10403EARY	Chassis brand	ISUZU
Overall dimensions		4605x1695x2105mm	Wheel base	2490mm
Front/rear wheel track		1385/1395mm	Front/rear suspension	1015/1100mm
Approach/departure angle		24/20°	Maximum speed	98km/h
Chassis Manufacturer		QingLing Motors (Group) Co., Ltd

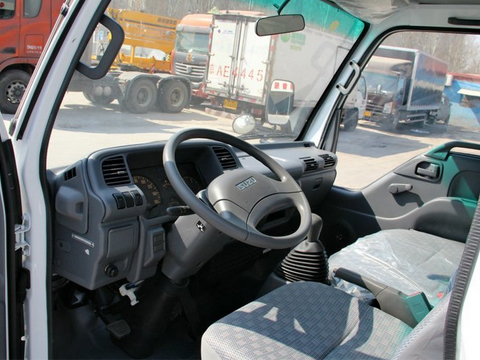

Cab	Configuration	100P, single row cab, allowable 3 passengers, air conditioner, USB radio interface, ABS
	Color	White,other color is optional
Engine	Model	4JB1CN
	Emission	Euro 4
	Type	4 cylinders, in-line, diesel engine
	Rated power	98hp
	Displacement	2771ml
	Manufacturer	Isuzu (ChongQing) Engine Co., LTD
Tire	Size	650-15 nylon tire
	Number	4+1 nos
Frame	172X65(4)mm
Front axle	2.5 tons
Rear axle	3.0-4.8 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	Isuzu MSB five speed transmission, 5 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
If there is a slight change in the chassis parameters above, please take the actual product as the standard.

Van body structure parameters
Van dimensions	3100X1600X380mm	Loading capacity	3000kg
Van material	Metal structure	Color and logo	Optional
Standard configuration	Chassis, sub frame, container.

1, Attached parts and tools put into standard export box.

2, Cargo truck will be cleaned and covered with wax before delivery.

3, Cargo truck will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.

5, Some small mini cargo truck can be put into container according to its overall dimensions.

1. Some maintenance spare parts wil be supplied freely when delieverying truck.

2. Main parts, such as engine, axle will be warrantied for 6 months.

3. Spare parts will be supplied at factory cost price, freight will be born by your side.

4. Recordes will be established for each trucks and can supply any parts in future.
