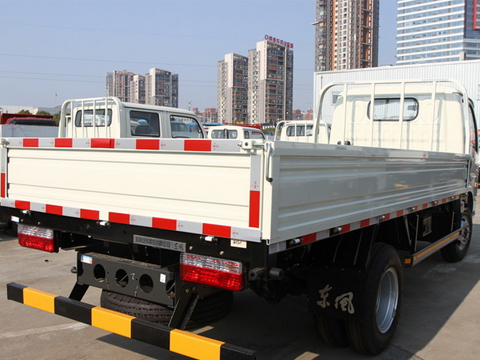

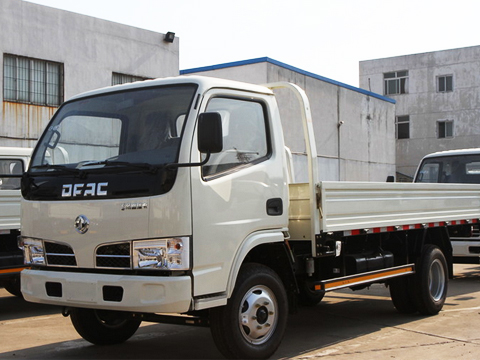

Dongfeng Euro II Standard Diesel Engine 2 to 3 ton Light Truck/Lorry Truck/Cargo Truck
Dongfeng Euro II Standard Diesel Engine 2 to 3 ton Light Truck/Lorry Truck/Cargo Truck
Dongfeng Euro II Standard Diesel Engine 2 to 3 ton Light Truck/Lorry Truck/Cargo Truck
Dongfeng Euro II Standard Diesel Engine 2 to 3 ton Light Truck/Lorry Truck/Cargo Truck
Email

Dongfeng Euro II Standard Diesel Engine 2 to 3 ton Light Truck/Lorry Truck/Cargo Truck

● Application of Dongfeng 2 to 3 ton Light Truck

1. Applies to transport cargo less than 3 ton;

2. Also be used for small size and short distance transportation.

● Advantages of Dongfeng 2 to 3 ton Light Truck

1. Top brand chassis in China;

2. Spare parts can be supplied all the time;

3. OEM ability, we can design as per your request;

4. Fastest delievery will let you get truck at shortest time.

● Features of Dongfeng 2 to 3 ton Light Truck

1. Emission standard euro 3;

2. Less fuel but longer distance;

3. YUNNEI engine with powerful performance;

4. Dongfeng original strong chassis.

● Details Specification of Dongfeng 2 to 3 ton Light Truck

Vehicle parameters

Vehicle Model

HLW5035EL

Vehicle Brand

DONGFENG

Overall dimensions

5950X2150X2250mm

Curb weight

2565kg

Van dimensions

4200X2100X400mm

Loading capacity

2000-3000kg

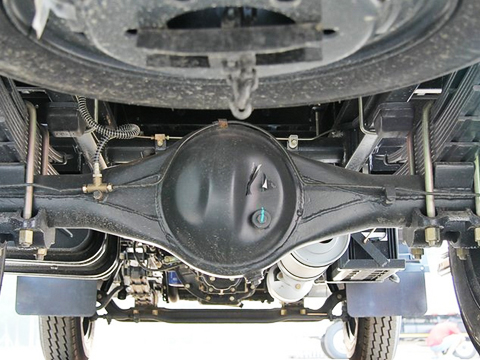

Chassis parameters

Chassis model

EQ1060TJ20D3

Chassis brand

DONGFENG

Overall dimensions

5850X1950X2080mm

Wheel base

3300mm

Front/rear wheel track

1750/1586mm

Front/rear suspension

1180/1590mm

Approach/departure angle

22/23°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co., Ltd

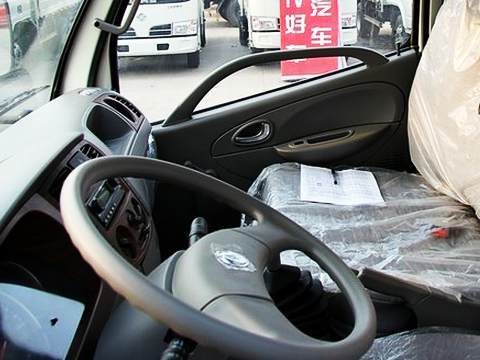

Cab

Configuration

Cab width: 1730mm, Single row cab,allowable 2 passengers, power-assisted steering, Camel battery (24V maintenance free), Pneumatic brake system

Color

White, other color is optional

Engine

Model

YN490QB

Emission

Euro 3

Type

in-line, 4-stroke, water-cooled, diesel engine

Rated power

48kW/65hp, rated power speed 3200rpm

Displacement

2672ml

Bore x stroke

90x105mm

Manufacturer

Kunming Yunnei Power Co.,Ltd

Tire

Size

7.00R16 Steel wire

Number

6+1 nos

Frame

188mm

Front axle

2.0T

Rear axle

4.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering wheel

Left hand drive

Selective configuration

Air conditioner

If there is a slight change in the chassis parameters above, please take the actual product as the standard.

Van body structure parameters

Van dimensions

4200X2100X400mm

Loading capacity

2000-3000kg

Van material

metal construction

Color and Logo

Optional

Standard configuration

Chassis,sub frame, Container

Optional configuration

lifting hydraulic cylinder for unloading

Optional configuration

Double cab (Van dimensions: 3370X2100X400mm)

MOQ, payment terms, delivery terms, price

MOQ

One unit

Payment terms

T/T 30% down payment, 70% balance after inspection before delivery

L/C is optional

Inspection

Buyer's agent or third party inspection agency,the cost is paid by the buyer

Delivery term

20 days from down payment

Documentation

Maintenance manual

User manual

Packing list

Commercial invoice

Certificate of origin is optional

Spare parts list for purchase is optional

Standard tools

With standard tools for chassis and water tank structure

Packing

The main vehicle nude and covered with wax, attached parts and tools put into standard export box

Other requirements

Please fill in here

● Packing & Shipping

1, Attached parts and tools put into standard export box.

2, Cargo truck will be cleaned and covered with wax before delivery.

3, Cargo truck will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.

5, Some small mini cargo truck can be put into container according to its overall dimensions.

● After-sale Service

1. Some maintenance spare parts wil be supplied freely when delieverying truck.

2. Main parts, such as engine, axle will be warrantied for 6 months.

3. Spare parts will be supplied at factory cost price, freight will be born by your side.

4. Recordes will be established for each trucks and can supply any parts in future.
