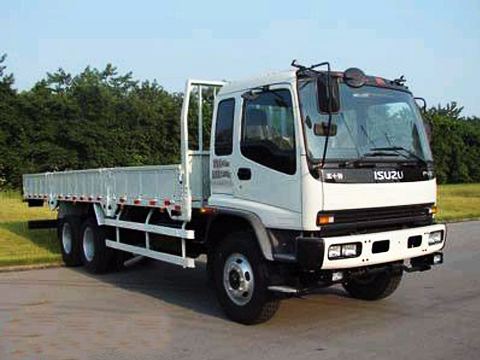

Isuzu Euro IV Standard Diesel Engine 15ton Heavy Duty Cargo Truck/Lorry Truck
Isuzu Euro IV Standard Diesel Engine 15ton Heavy Duty Cargo Truck/Lorry Truck
Isuzu Euro IV Standard Diesel Engine 15ton Heavy Duty Cargo Truck/Lorry Truck
Isuzu Euro IV Standard Diesel Engine 15ton Heavy Duty Cargo Truck/Lorry Truck
Email

Isuzu Euro IV Standard Diesel Engine 15ton Heavy Duty Cargo Truck/Lorry Truck

● Application of Isuzu Euro IV Standard Diesel Engine 15ton Heavy Duty Cargo Truck/Lorry Truck

1. Applies to transport cargo less than 15 ton;

2. Also be used for various of cargo and long distance transportation.

● Advantages of Isuzu Euro IV Standard Diesel Engine 15ton Heavy Duty Cargo Truck/Lorry Truck

1. Turbocharging engines;

2. Exceptional fuel efficiency;

3. Lower CO2 emissions;

4. Multi leaf springs.

● Features of Isuzu Euro IV Standard Diesel Engine 15ton Heavy Duty Cargo Truck/Lorry Truck

1. Isuzu chassis with stronger frame;

2. Less fuel consuming but longer driving;

3. Isuzu special transmission;

4. Isuzu engine with powerful performance.

● Details Specification of Isuzu Euro IV Standard Diesel Engine 15ton Heavy Duty Cargo Truck/Lorry Truck

Vehicle parameters

Vehicle Model

QL1250DTFZ

Vehicle Brand

ISUZU

Overall dimensions

11685X2465X2860mm

Curb weight

9595kg

Van dimensions

9300X2330X450mm

Loading capacity

15000kg

Chassis parameters

Chassis model

QL1250DTFZY

Chassis brand

ISUZU

Overall dimensions

11497X2465X2810 mm

Wheel base

5700+1300mm

Front/rear wheel track

1960/1855/1855mm

Front/rear suspension

1335/3350mm

Approach/departure angle

26/9°

Maximum speed

90km/h

Chassis Manufacturer

Qingling Motors Company Limited

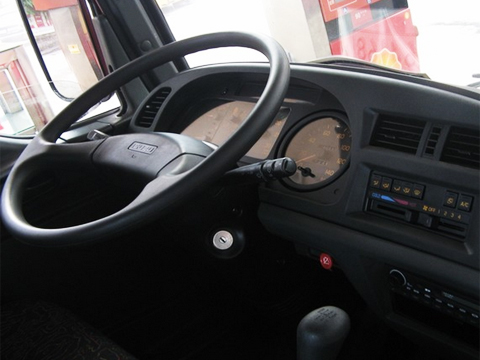

Cab

Configuration

FVZ chassis / air conditioning / electric window /USB audio / cab flip

Color

White, other color is optional

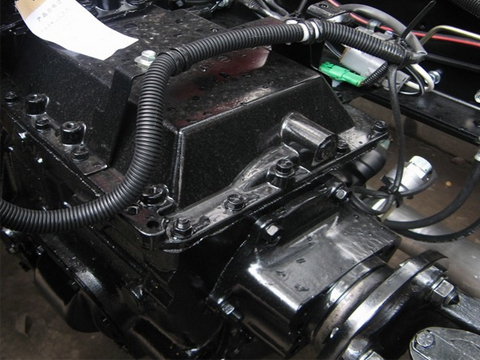

Engine

Model

6HK1-TCSG40

Emission

Euro 4

Type

Inline six cylinder, turbocharged in the cold, 1800bar high pressure common rail, DOC.

Rated power

280hp, rated power speed 1450rpm

Displacement

7780ml

Max.torque

883N.m

Bore x stroke

115X125mm

Manufacturer

Isuzu Engine Co. Ltd. (Chongqing)

Tire

Size

10.00-20 Nylon tire

Number

10+1 nos

Front axle

7 tons

Rear axle

18 tons

Drive form

6X4

Suspension

Multi leaf springs

Rated voltage

24V, DC

Transmissions

9JS119TA  9 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

10.00R20 steel wire tire, 11.00R20 steel wire tire, The wheelbase and the carriage length are optional.

If there is a slight change in the chassis parameters above, please take the actual product as the standard.

Van body structure parameters

Van dimensions

9300X2330X450mm

Loading capacity

15000kg

Van material

Corrugated iron tile

Color and Logo

Optional

Standard configuration

Chassis, sub frame, corrugated iron tile van body.

● Packing & Shipping

1, Attached parts and tools put into standard export box.

2, Cargo truck will be cleaned and covered with wax before delivery.

3, Cargo truck will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.

5, Some small mini cargo truck can be put into container according to its overall dimensions.

● After-sale Service

1. Some maintenance spare parts wil be supplied freely when delieverying truck.

2. Main parts, such as engine, axle will be warrantied for 6 months.

3. Spare parts will be supplied at factory cost price, freight will be born by your side.

4. Recordes will be established for each trucks and can supply any parts in future.
