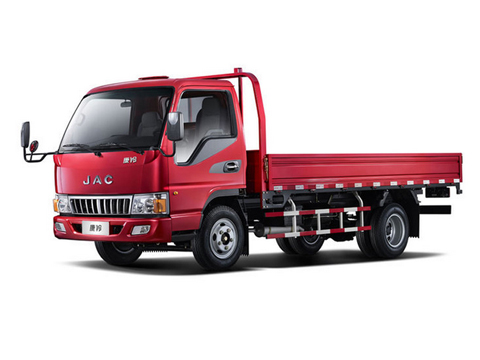

JAC Euro II Standard Diesel Engine 2 to 3 ton Light Truck/Lorry Truck/Cargo Truck
JAC 2 to 3 ton Lorry Truck
JAC 2 to 3 ton Lorry Truck
JAC 2 to 3 ton Lorry Truck
Email

JAC Euro II Standard Diesel Engine 2 to 3 ton Light Truck/Lorry Truck/Cargo Truck

● Application of JAC 2 to 3 ton Lorry Truck

1. Applies to transport cargo less than 3 ton;

2. Also be used for small size and short distance transportation.

● Advantages of JAC 2 to 3 ton Lorry Truck

1. Top brand chassis in China;

2. Spare parts can be supplied all the time;

3. OEM ability, can produce according to your demand, material, size, color and logo are optional for you;

4. Fast delievery: usually we can delievery at 20days after getting deposit.

● Features of JAC 2 to 3 ton Lorry Truck

1. Classic cabin, small wind resistance;

2. With aire conditioner and more comfortable;

3. Wider cargo box, six speed transmission;

4. Air-cut brake, power steering.

● Details Specification of JAC 2 to 3 ton Lorry Truck

Vehicle parameters

Vehicle Model

OMAC5060P73K1B2VZ

Vehicle Brand

JAC

Overall dimensions

4870×1885×2810(mm)

Curb weight

2680kg

Van dimensions

3115×1750×1810 (mm)

Loading capacity

3000kg

Chassis parameters

Chassis model

HFC1060P73K1B2VZ

Chassis brand

JAC

Overall dimensions

4785x1715x1995mm

Wheel base

2490mm

Front/rear wheel track

1440/1425mm

Front/rear suspension

1110/1185mm

Approach/departure angle

20.5/20°

Maximum speed

90km/h

Chassis Manufacturer

Anhui Jianghuai Automobile Co., Ltd

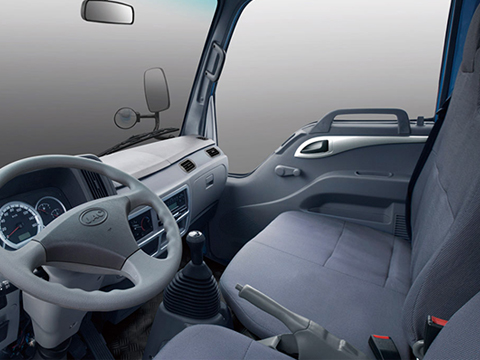

Cab

Configuration

Cab width: 1695mm，Single row cab（2 people）, Air conditioner, Hydraulic brake system

Color

white, other color is optional

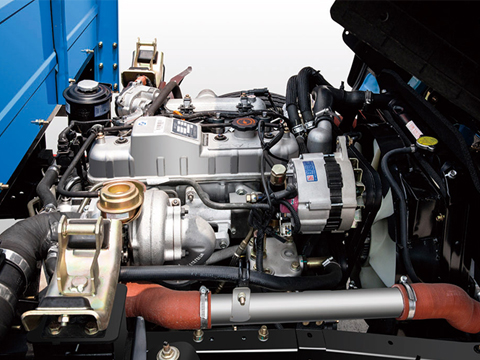

Engine

Model

HFC4DA1-1

Emission

Euro 2

Type

4 cylinder, Vertical inline, water-cooled, four stroke, turbocharged, medium cooled, diesel engine

Rated power

78kW /106hp, rated power speed 3600rpm

Displacement

2554ml

Max.torque

240N.m

Manufacturer

Anhui Jianghuai Automobile Co., Ltd

Tire

Size

6.50R16 Steel tire

Number

6+1 nos

Rear axle

2.8 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V, DC

Transmissions

5 speed forward 1 reverse.(MSB-5M)

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above, please take the actual product as the standard.

Van body structure parameters

Van dimensions

3115×1750×1810 (mm)

Loading capacity

3000kg

Van material

Metal construction

Color and Logo

Optional

Standard configuration

Chassis, sub frame, Container

Select configuration

Self unloading function

● Packing & Shipping

1, Attached parts and tools put into standard export box.

2, Mini cargo truck will be cleaned and covered with wax before delivery.

3, Mini cargo truck will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.

5, Some small mini cargo truck can be put into container according to its overall dimensions.

● After-sale Service

1. Some maintenance spare parts wil be supplied freely when delieverying truck.

2. Main parts, such as engine, axle will be warrantied for 6 months.

3. Spare parts will be supplied at factory cost price, freight will be born by your side.

4. Recordes will be established for each trucks and can supply any parts in future.
