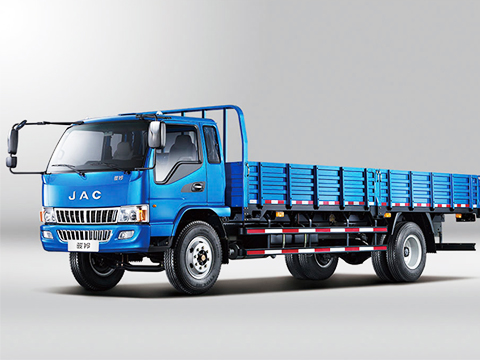

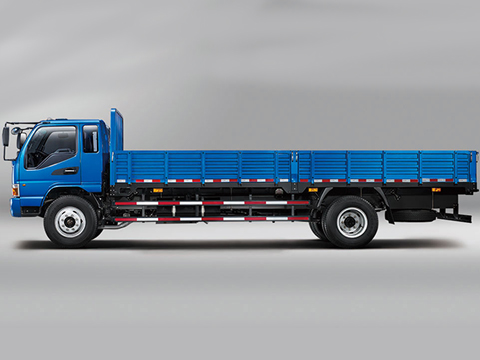

JAC Diesel Engine Euro V Emmission Standard 7 to 8 ton Cargo Truck/ Lorry Truck/ Light Truck

JAC Diesel Engine Euro V Emmission Standard 7 to 8 ton Cargo Truck/ Lorry Truck/ Light Truck

1. Applies to transport cargo less than 8 ton;

2. Also be used for various of cargo and long distance transportation.

1. Top brand and highest quality chassis in China;

2. Spare parts can be supplied all the time;

3. OEM ability, can produce according to your demand, material, size, color and logo are optional for you;

4. Fast delievery: usually we can delievery at 20days after getting deposit.

1. Super big space of cabin and humanized interior design;

2. Adjustable steering, foglight, tachometer and so on;

3. Luxury design on aire inlet, better aire intake, higher combustion efficiency and better dynamic performance;

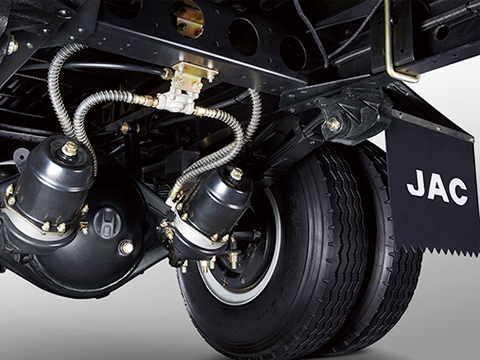

4. Pneumatic brake design, same quality with army truck, can be suitable to various of roads.

Chassis parameters
Chassis model		HFC1091P91K2C6V	Chassis brand	JAC
Overall dimensions		6810x1995x2216mm	Wheel base	3845mm
Front/rear wheel track		1700/1610mm	Front/rear suspension	1080/1885mm
Approach/departure angle		22/15°	Maximum speed	95km/h
Chassis Manufacturer		Anhui Jianghuai Automobile Co., Ltd.
Cab	Configuration	Cab width: 2070mm (take 3 persons), Single row cab, Clutch booster, multifunction steering wheel, exhaust brake, ABS, pneumatic brake system, cruise control electric heated mirrors, electronic lock doors and windows.
	Color	White, other color is optional
Engine	Model	YC4S160-50
	Emission	Euro 5
	Type	Vertical, inline, water-cooled, four stroke, intercooler, diesel engines
	Rated power	118Kw/160hp, rated power speed 2600rpm
	Displacement	3767ml
	Max.torque	550N.m
	Bore x stroke	102X115mm
	Manufacturer	Guangxi Yuchai Machinery Group Co., Ltd.
Tire	Size	7.50R16 Steel tire
	Number	6+1 nos
rear axle	6 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	6 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
If there is a slight change in the chassis parameters above, please take the actual product as the standard.

Van body structure parameters
Van dimensions	5200×2110×400mm	Loading capacity	8000kg
Van material	metal construction	Color and Logo	Optional
Standard configuration	Chassis, sub frame, Container
Select configuration	Self unloading function

1, Attached parts and tools put into standard export box.

2, Mini cargo truck will be cleaned and covered with wax before delivery.

3, Mini cargo truck will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.

5, Some small mini cargo truck can be put into container according to its overall dimensions.

1. Some maintenance spare parts wil be supplied freely when delieverying truck.

2. Main parts, such as engine, axle will be warrantied for 6 months.

3. Spare parts will be supplied at factory cost price, freight will be born by your side.

4. Recordes will be established for each trucks and can supply any parts in future.
