JAC Diesel Engine Euro II Emmission Standard 4 to 5 ton Cargo Truck/Lorry Truck/Light Truck

JAC Diesel Engine Euro II Emmission Standard 4 to 5 ton Cargo Truck/Lorry Truck/Light Truck

1. Applies to transport cargo less than 5 ton;

2. Also be used for various of cargo and short distance transportation.

1. Top brand and highest quality chassis in China;

2. Spare parts can be supplied all the time;

3. OEM ability, can produce according to your demand, material, size, color and logo are optional for you;

4. Fast delievery: usually we can delievery at 20days after getting deposit.

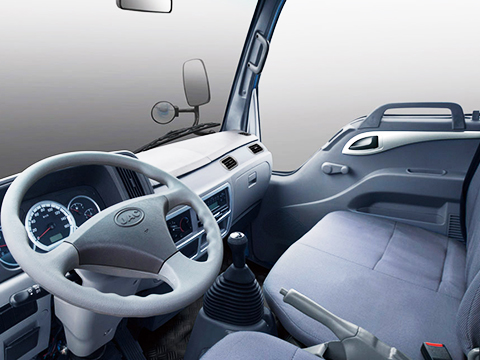

1. Elegant design on appearance and luxurious interior;

2. Adjustable steering, foglight, tachometer and so on;

3. Luxury design on aire inlet, better aire intake, higher combustion efficiency and better dynamic performance;

4. Pneumatic brake design, same quality with army truck, can be suitable to various of roads.

Chassis parameters
Chassis model		HFC1041P73K2C3V	Chassis brand	JAC
Overall dimensions		5840x1861x2217mm	Wheel base	3360mm
Front/rear wheel track		1440/1425mm	Front/rear suspension	1110/1370mm
Approach/departure angle		21/16°	Maximum speed	98km/h
Chassis Manufacturer		Anhui Jianghuai Automobile Co., Ltd
Cab	Configuration	Cab width: 1695mm，Single row cab (2 people), Hydraulic brake system, Air conditioner
	Color	White, other color is optional

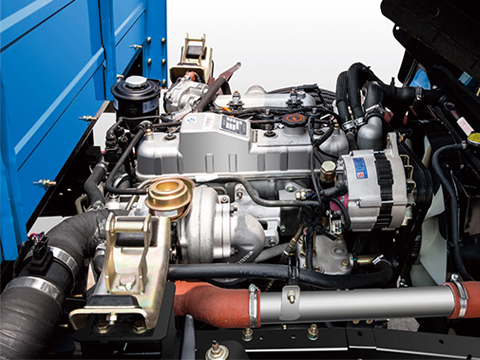

Engine	Model	HFC4DA1-1
	Emission	Euro 2
	Type	4 cylinder, Vertical inline, water-cooled, four stroke, turbocharged, medium cooled, diesel engine
	Rated power	78kW /106hp, rated power speed 3600rpm
	Displacement	2554ml
	Max.torque	240N.m
	Bore x stroke	Anhui Jianghuai Automobile Co., Ltd
	Manufacturer	HFC4DA1-1
Tire	Size	7.00R16 Steel tire
	Number	6+1 nos
rear axle	4 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	5 speed forward 1 reverse.( MSB-5M)
Steering device	Power assisted steering
Steering wheel	Left hand drive
If there is a slight change in the chassis parameters above, please take the actual product as the standard.

Van body structure parameters
Van dimensions	5995×2000×2220 (mm)	Loading capacity	5000kg
Van material	metal construction	Color and Logo	Optional
Standard configuration	Chassis, sub frame, Container
Select configuration	Self unloading function

1, Attached parts and tools put into standard export box.

2, Mini cargo truck will be cleaned and covered with wax before delivery.

3, Mini cargo truck will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.

5, Some small mini cargo truck can be put into container according to its overall dimensions.

1. Some maintenance spare parts wil be supplied freely when delieverying truck.

2. Main parts, such as engine, axle will be warrantied for 6 months.

3. Spare parts will be supplied at factory cost price, freight will be born by your side.

4. Recordes will be established for each trucks and can supply any parts in future.
