Isuzu Euro IV Standard Diesel Engine 5 to 6 ton Light Duty Truck/Lorry Truck/Cargo Truck

Isuzu Euro IV Standard Diesel Engine 5 to 6 ton Light Duty Truck/Lorry Truck/Cargo Truck

1. Applies to transport cargo less than 6 ton;

2. Also be used for small size and short distance transportation.

1. Famous world brand chassis;

2. Exceptional fuel efficiency;

3. Lower CO₂ emissions;

4. OEM availablility.

1. Power assisted steering;

2. Isuzu MSB transmission;

3. Turbocharging diesel engine;

4. Euro IV emission standard.

Chassis parameters
Chassis model		QL1070A1HAY	Chassis brand	ISUZU
Overall dimensions		5900X1880X2150mm	Wheel base	3360mm
Front/rear wheel track		1504/1425mm	Front/rear suspension	1015/1525mm
Approach/departure angle		24/16°	Maximum speed	105km/h
Chassis Manufacturer		QingLing Motors (Group) Co., Ltd.

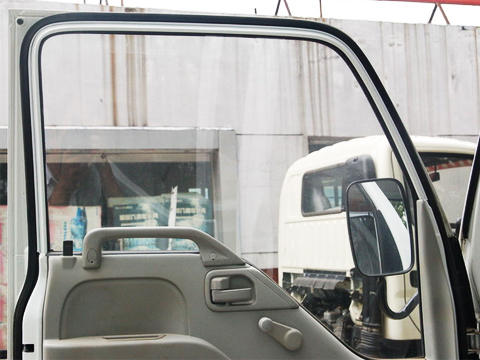

Cab	Configuration	600P,single row cab,allowable 3 passengers, air conditioner, USB radio interface,car interior.
	Color	White, other color is optional
Engine	Model	4KH1-TCG40
	Emission	Euro 4
	Type	4 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, 4-valve, diesel engine
	Rated power	120hp, rated power speed 3400rpm
	Displacement	2999ml
	Manufacturer	Isuzu (chongqing) engine Co., Ltd.
Tire	Size	7.00-16 nylon tire
	Number	6+1 nos
Frame	172X65(4+3)mm
Front axle	2.5 tons
Rear axle	4.8 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	Isuzu MSB five speed transmission, 5 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
If there is a slight change in the chassis parameters above, please take the actual product as the standard.

Van body structure parameters
Van dimensions	4000X1900X500mm	Loading capacity	5000kg
Van material	Corrugated iron tile	Color and Logo	Optional
Standard configuration	Chassis, sub frame, corrugated iron tile van body.

1, Attached parts and tools put into standard export box.

2, Cargo truck will be cleaned and covered with wax before delivery.

3, Cargo truck will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.

5, Some small mini cargo truck can be put into container according to its overall dimensions.

1. Some maintenance spare parts wil be supplied freely when delieverying truck.

2. Main parts, such as engine, axle will be warrantied for 6 months.

3. Spare parts will be supplied at factory cost price, freight will be born by your side.

4. Recordes will be established for each trucks and can supply any parts in future.
