Heavy Duty Cargo Truck|Isuzu 8 to 10 ton Heavy Duty Cargo Truck

Home
Products
Lorry Truck
Medium-duty Truck

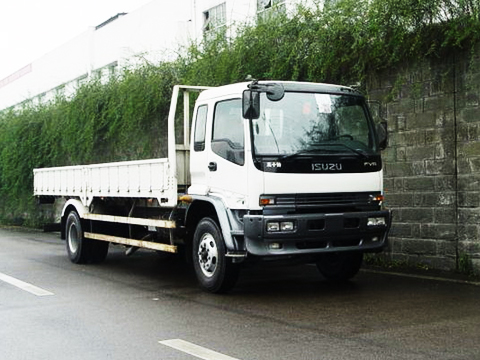

Isuzu Euro IV Standard Diesel Engine 8 to 10ton Heavy Duty Truck/Lorry Truck/Cargo Truck

Isuzu Euro IV Standard Diesel Engine 8 to 10ton Heavy Duty Truck/Lorry Truck/Cargo Truck

1. Applies to transport cargo less than 6 ton;

2. Also be used for small size and long distance transportation.

1. Turbocharging engines;

2. Exceptional fuel efficiency;

3. Lower CO₂ emissions;

4. Multi leaf springs.

1. Isuzu chassis with stronger frame;

2. Less fuel consuming but longer driving;

3. Isuzu special transmission;

4. Isuzu engine with powerful performance.

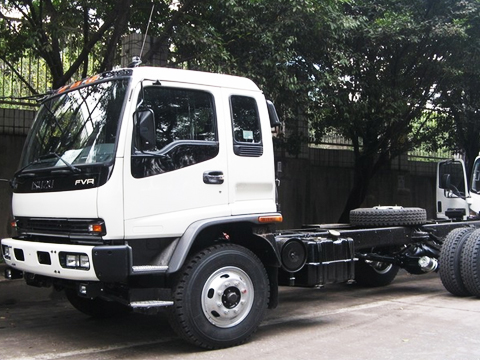

Chassis parameters
Chassis model		QL1160AQFRY	Chassis brand	ISUZU
Overall dimensions		8785X2465X2810 mm	Wheel base	5550mm
Front/rear wheel track		1690/1855mm	Front/rear suspension	1335/2115mm
Approach/departure angle		26/13°	Maximum speed	95km/h
Chassis Manufacturer		Qingling Motors Company Limited

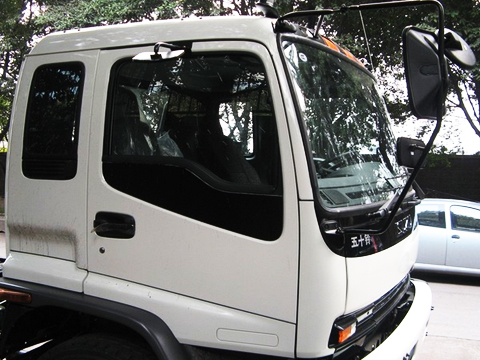

Cab	Configuration	FVR chassis / air conditioning / electric window /USB audio / cab flip
	Color	White, other color is optional

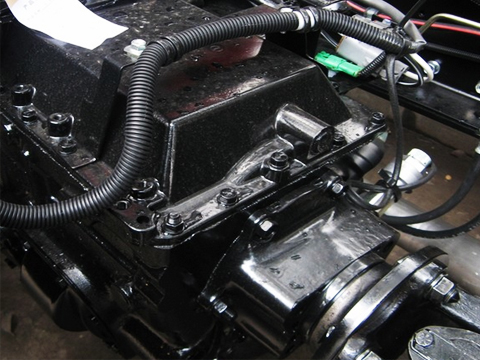

Engine	Model	6HK1-TCNG40
	Emission	Euro 4
	Type	Inline six cylinder, turbocharged in the cold, 1800bar high pressure common rail, DOC.
	Rated power	240hp, rated power speed 1450rpm
	Displacement	7780ml
	Max.torque	760N.m
	Bore x stroke	115X125mm
	Manufacturer	Isuzu Engine Co. Ltd. (Chongqing)
Tire	Size	10.00-20 Nylon tire 10.00-20
	Number	6+1 nos
Front axle	6.3 tons
Rear axle	13 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	Isuzu MLD 6 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration	FTR(190hp), 10.00R20 steel wire tire, 11.00R20 steel wire tire.
If there is a slight change in the chassis parameters above, please take the actual product as the standard.

Van body structure parameters
Van dimensions	6600X2330X450mm	Loading capacity	9000kg
Van material	Corrugated iron tile	Color and Logo	Optional

1, Attached parts and tools put into standard export box.

2, Cargo truck will be cleaned and covered with wax before delivery.

3, Cargo truck will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.

5, Some small mini cargo truck can be put into container according to its overall dimensions.

1. Some maintenance spare parts wil be supplied freely when delieverying truck.

2. Main parts, such as engine, axle will be warrantied for 6 months.

3. Spare parts will be supplied at factory cost price, freight will be born by your side.

4. Recordes will be established for each trucks and can supply any parts in future.
