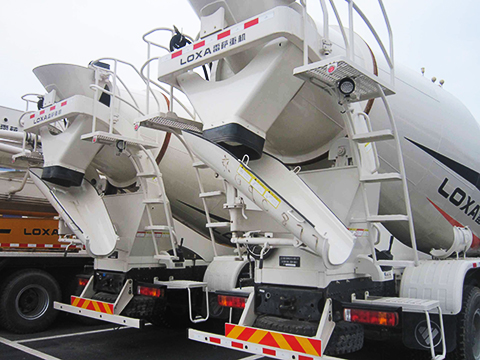

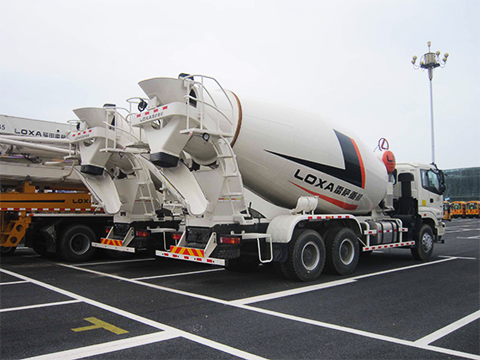

FOTON Euro II Standard 12 Cubic Meter Concrete Mixer Truck

● Application of Foton 12 Cubic Meter Concrete Mixer Truck

1. Cement mixing station;

2. Construction field.

● Advantages of Foton 12 Cubic Meter Concrete Mixer Truck

1. Italy imported reducer, hydraulic motor and pump;

2. Spare parts can be supplied all the time;

3. OEM availability; can design the truck as per your request;

4. 24 Hours online after-sale service.

● Features of Foton 12 Cubic Meter Concrete Mixer Truck

1. Mixer drum turn smoothly, no segregation;

2. High quality mixer drum, no leakage;

3. Reinforced truck frame, no vibration during transportation;

4. Large slumps, good flowability, easy to discharge.

● Details Specification of Foton 12 Cubic Meter Concrete Mixer Truck

Vehicle parameters

Vehicle Model

EHY5253GJBBC

Vehicle Brand

FOTON

Overall dimensions

9800X2495X3990mm

Curb weight

15000kg

Loading capacity

12m3



Chassis parameters

Chassis model

BJ5253GJB-RA

Chassis brand

FOTON

Overall dimensions

8890X2495X3005mm

Wheel base

4100+1350mm

Front/rear wheel track

2010/1865/1865mm

Front/rear suspension

1532/1788mm

Approach/departure angle

22/16°

Maximum speed

81km/h

Chassis Manufacturer

Beijing Foton Daimler Motor Co., Ltd.

Cab

Configuration

ETX2490 cab(with sleeping berth), allowable 3 passengers. Full floating rear airbag cab, manual cab lifting, airbag seat, manual rear view mirror glass lifter, reversing radar, desert air filter.

Color

White,other color is optional

Engine

Model

WD615.44

Emission

Euro 2

Type

6 cylinders,4 stroke,direct inject, water-cooled,diesel engine

Rated power

320hp,rated power speed 1600rpm

Displacement

9726ml

Max.torque

1250N.m

Bore x stroke

126x130mm

Manufacturer

Weichai Power Co. Ltd.

Tire

Size

295/80R22.5 Vacuum tire

Number

10+1 nos

Fuel tank

350L aluminum fuel tank

Front axle

7.5T

Rear axle

13 tons

Clutch

φ430 diaphragm spring

Drive form

6X4

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

Gear box 9JSD150T-B, 9 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Right hand drive

If there is a slight change in the chassis parameters above, please take the actual product as the standard

Concrete mixer truck structure parameters

Mixing capacity(m³)

12

Color and Logo

Optional

Feeding speed (m³/min)

≥8

Discharge speed(m³/min)

≥5

Discharge residual rate

≤0.5%

Slump scope(mm)

50-210

Water tank capacity(L)

300

Water pressure(Mpa)

0.35-0.38

Tank material

6mm alloy steel

Tank front head

8mm alloy steel

Reducer

Italy Bonfiglioli

Hydraulic motor

Germany REXROTH

Hydraulic pump

Germany REXROTH

Radiator

KAIPENG

Standard configuration

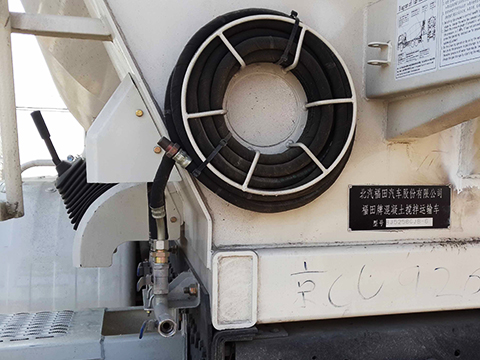

Chassis, sub frame, mixer tank, reducer, hydraulic pump, hydraulic motor, radiator, water tank, cleaning hose, feed port, discharge port, climbing ladder, air pressure water supply device.

8m3

Germany ZF3301 reducer, Germany REXROTH hydraulic pump, Germany REXROTH hydraulic motor, KAIPENG radiator, mixer tank(main tank 5mm alloy steel wear resistant material, front tank head 8mm alloy steel wear resistant material)

9-10m3

Italy Bonfiglioli reducer, Germany REXROTH hydraulic pump, Germany REXROTH hydraulic motor, KAIPENG radiator, mixer tank(main tank 5mm alloy steel wear resistant material, front tank head 8mm alloy steel wear resistant material)

12-15m3

Italy Bonfiglioli reducer, Germany REXROTH hydraulic pump, Germany REXROTH hydraulic motor, KAIPENG radiator, mixer tank(main tank 6mm alloy steel wear resistant material, front tank head 8mm alloy steel wear resistant material)

15-18m3

Italy PMP reducer, Italy PMP hydraulic pump, Italy PMP hydraulic motor, KAIPENG radiator, mixer tank(main tank 6mm alloy steel wear resistant material, front tank head 8mm alloy steel wear resistant material)

Selective configuration

Emergency high pressure oil hose(4 pieces), 12m emergency oil hose(Italy), water cannon, large tool box, electric water supplying system.
Germany ZF/Italy PMP reducer, Italy PMP/Italy MESSORI/America EATON/America SAUER hydraulic pump, hydraulic motor.

● Packing & Shipping

1, Attached parts and tools put into standard export box.

2, Cargo truck will be cleaned and covered with wax before delivery.

3, Cargo truck will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.

5, Some small mini cargo truck can be put into container according to its overall dimensions.

● After-sale Service

1. Some maintenance spare parts will be supplied freely when delieverying truck.

2. Main parts, such as engine, axle will be warrantied for 6 months.

3. Spare parts will be supplied at factory cost price, freight will be born by your side.

4. Recordes will be established for each trucks and can supply any parts in future.
