Dongfeng Dump Truck|Dongfeng 2 to 3 ton Dump Truck/Tipper Truck

Home
Products
Construction Truck
Dump Truck

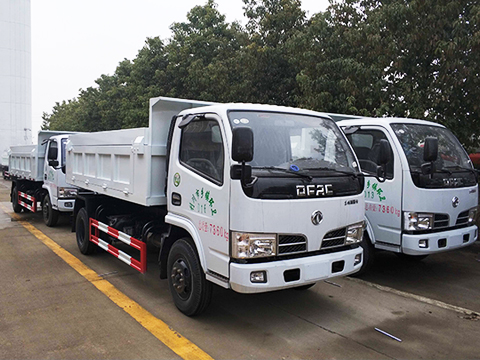

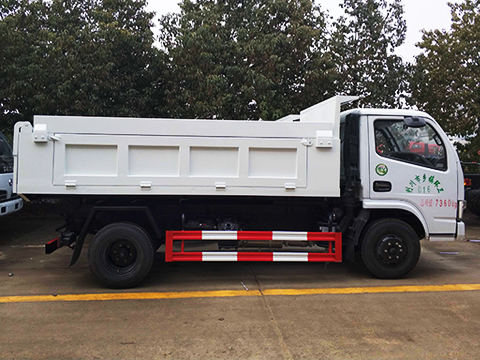

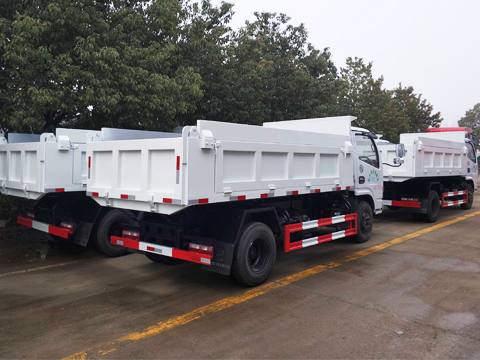

Dongfeng Euro III Standard Diesel Engine 2 to 3 ton Dump Truck/Tipper Truck

Dongfeng Euro III Standard Diesel Engine 2 to 3 ton Dump Truck/Tipper Truck

● Application of Dongfeng 2 to 3 ton Dump Truck/Tipper Truck

1. Applies to transport cargo less than 3 ton.

2. Mainly transport sand, stone, earth and so on.

● Advantages of Dongfeng 2 to 3 ton Dump Truck/Tipper Truck

1. Top brand chassis in China;

2. Spare parts can be supplied all the time;

3. OEM ability, can design porduct as per your request;

4. 24 Hours Online After-Sale Service.

● Features of Dongfeng 2 to 3 ton Dump Truck/Tipper Truck

1. Quality assured powerful engine;

2. High quality hydraulic cylinder for unloading system;

3. Double deck frame;

4. Power-assisted steering and pneumatic brake system.

● Details Specification of Dongfeng 2 to 3 ton Dump Truck/Tipper Truck

Vehicle parameters
Vehicle Model	HLW5035EL	Vehicle Brand	DONGFENG
Overall dimensions	5950X2150X2250mm	Curb weight	2565kg
Van dimensions	4200X2100X400mm	Loading capacity	2000-3000kg

Chassis parameters
Chassis model		EQ1060TJ20D3	Chassis brand	DONGFENG
Overall dimensions		5850X1950X2080mm	Wheel base	3300mm
Front/rear wheel track		1750/1586mm	Front/rear suspension	1180/1590mm
Approach/departure angle		22/23°	Maximum speed	80km/h
Chassis Manufacturer		Dongfeng Automobile Co., Ltd.
Cab	Configuration	Cab width: 1730mm, Single row cab, allowable 2 passengers, power-assisted steering, Camel battery (24V maintenance free), Pneumatic brake system.
	Color	White,other color is optional
Engine	Model	YN490QB
	Emission	Euro 3
	Type	In-line, 4-stroke, water-cooled, diesel engine
	Rated power	48kW/65hp, rated power speed 3200rpm
	Displacement	2672ml
	Bore x stroke	90x105mm
	Manufacturer	Kunming Yunnei Power Co., Ltd
Tire	Size	7.00R16 Steel wire
	Number	6+1 nos
Frame	188mm
Front axle	2.0T
Rear axle	4.0T
Drive form	4X2
Rated voltage	24V,DC
Transmissions	5 speed forward 1 reverse.
Steering wheel	Left hand drive
Selective configuration	Air conditioner
If there is a slight change in the chassis parameters above, please take the actual product as the standard.

Van body structure parameters
Van dimensions	4200X2100X400mm	Loading capacity	2000-3000kg
Van material	Metal construction	Color and Logo	Optional
Optional configuration	Lifting hydraulic cylinder for unloading
Optional configuration	Double cab (Van dimensions: 3370X2100X400mm)

MOQ, payment terms, delivery terms, price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
Payment terms	L/C is optional
Inspection	Buyer's agent or third party inspection agency, the cost is paid by the buyer.
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and water tank structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box.
Other requirements	Please fill in here

● Packing

1, Attached parts and tools put into standard export box.

2, Cargo truck will be cleaned and covered with wax before delivery.

3, Cargo truck will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.

5, Some small mini cargo truck can be put into container according to its overall dimensions.

● After-sale service

1. Some maintenance spare parts wil be supplied freely when delieverying truck.

2. Main parts, such as engine, axle will be warrantied for 6 months.

3. Spare parts will be supplied at factory cost price, freight will be born by your side.

4. Recordes will be established for each trucks and can supply any parts in future.
