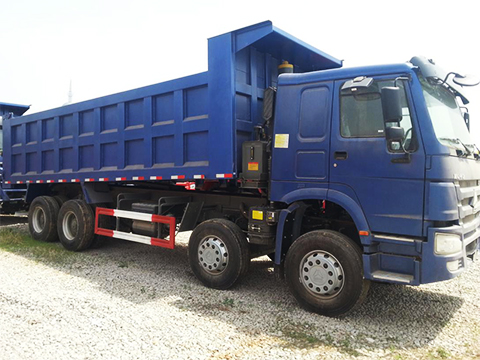

Truck Model |
ZZ3317N3567W (Left Hand Drive ) |
Truck Brand |
SINOTRUK-HOWO |
Dimension (LxWxH) (unloaded) |
10445x2550x3450 |
Cargo body size (LxWxH, mm) |
7000 x2300x1600(25.76m³) |
Cargo body thickness (mm) |
Bottom: 8mm, side: 6 mm |
Lift type of Carriage |
Front lifting |
Approaching angle/ Departure angel (°) |
19/21 |
Overhang (front/rear) (mm) |
1500/2095 |
Turning radius(m) |
11.5 |
Wheel base (mm) |
1800+3500+1350 |
Max speed (km/h) |
75 |
Curb weight (kg) |
15180 |
Gross vehicle weight |
40000 |
Fuel consumption (L/100km) |
38 |

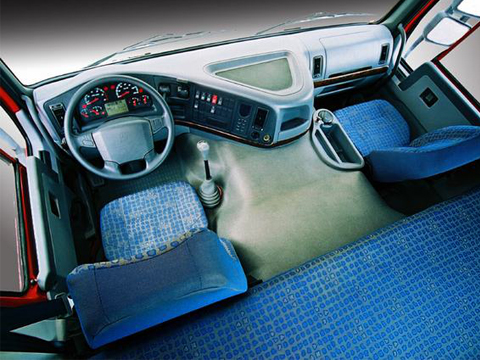

Cab |
HW76 cab, single sleeping, with air-condition), all-steel forward control, 70° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |

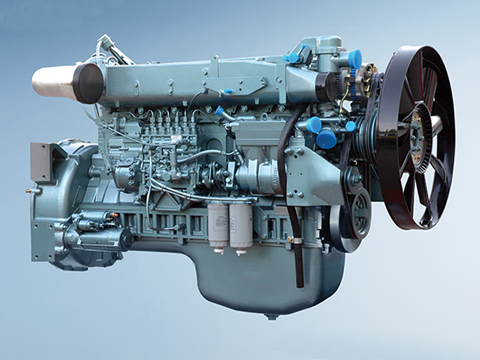

Engine Model (Steyr technology, made in China) |
Model |
WD615.69, 4-stroke direcct injection diesel engine, 6 cylinders in line with water cooling, turbo-charging and intercooling |
Horse Power, max (kw/rpm) |
336 HP 247/2200 |
Emission Standard |
EURO II |
Clutch |
SINOTRUK Φ430 diaphragm-spring clutch, hydraulically operating with air assistance |
Transmission |
Model |
HW19710, 10 forwards and 2 reverse |
Brake system |
Service brake |
Dual circuit compressed air brake |
Steering system |
Model |
ZF8098 Steering Gear Box, hydraulic steering with power assistance.(Right hand driving) |
Front axle |
HF9, Steering with double T-cross section beam |
Rear axle |
HC16, Casting axle housing, central double reduction with differential locks between axles and wheels(ratio:4.8) |
Tire |
12.00R20 Radial tire 11 pieces with 1 Spare tire. |
Electrical system |
Operating voltage |
24V, negative grounded |
Starter |
24V, 7.35KW |
Alternator |
28V, 1500W |
Batteries |
2*12V, 165 Ah |
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. |
Oil Tank |
Square type-300L Aluminum alloy fuel tank |
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. |
