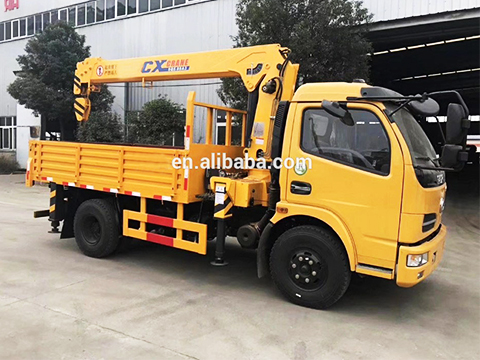

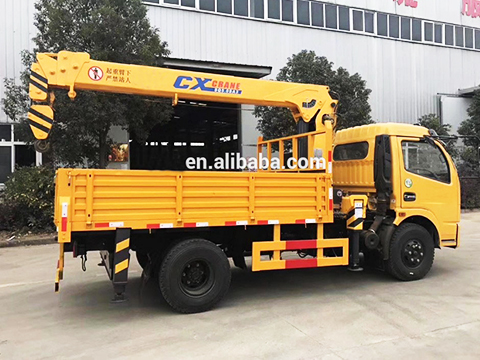

Dongfeng Lorry Truck Mounted Crane With 3.2 Ton Crane

1. Applies to transport various of cargo.

2. Also be used for loading cargo by crane.

1. Top brand chassis in China;

2. Spare parts can be supplied all the time;

3. OEM ability, can design porduct as per your request;

4. Top brand crane will be configurated.

1. 3.2 ton XCMG straight arm crane;

2. Maximum lifting height 6.8 meter;

3. Two telescopic arms;

4. Maximum working radius: 5.5 meter.

Chassis parameters
Chassis model		EQ1090T9ADJ3AC	Chassis brand	DONGFENG
Overall dimensions		6695x2180x2350mm	Wheel base	3800mm
Front/rear wheel track		1750/1586mm	Front/rear suspension	1180/1715mm
Approach/departure angle		22/13°	Maximum speed	80km/h
Chassis Manufacturer		Dongfeng Automobile Co., Ltd
Cab	Configuration	Single row cab, air conditioner, allowable 3 passengers, cab can be flipped
	Color	White, other color is optional
Engine	Model	CY4102-E3C
	Emission	Euro 3
	Type	4 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, diesel engine.
	Rated power	120hp, rated power speed 2800rpm
	Displacement	3856ml
	Bore x stroke	102x118mm
	Manufacturer	Dongfeng Chaoyang Diesel Power Co., Ltd.
Tire	Size	7.50R16, steel wire tire
	Number	6+1 nos
Frame	192mm
Brake	Air break, electronic flame out, exhaust brake
Fuel tank	100L, steel
Front axle	2.4T
Rear axle	4.2T
Drive form	4X2
Rated voltage	24V,DC
Transmissions	5 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration	Air Conditioner, Cummins engine B140 33(140hp)
If there is a slight change in the chassis parameters above, please take the actual product as the standard.

Truck mounted crane structure parameters
Van dimensions	5000, 5100, 5200X2150X550mm	Maximum loading of crane	3.2 tons
XCMG crane
Crane model	SQS68	Maximum lifting height	6.8m
Maximum working radius	5.5m	Maximum loading	3.2 tons
Crane type	Straight arm	Telescopic arms number	2
Rack cylinder		Color and Logo	Optional
Standard configuration	Chassis, sub frame, van body, XCMG straight arm truck crane equipped between the cabin and van body, mechanical leg.
Selective configuration	2-20 tons XCMG straight arm truck crane,1-30 tons XCMG folding arm truck crane, other brand truck crane, crane equipped at the rear of van body, lifting hydraulic cylinder for unloading, hydraulic legs,aerial working seat.

MOQ, payment terms, delivery terms, price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and truck mounted crane structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box.
Other requirements	Please fill in here
FOB	USD
CNF/CIF	USD	Shipment
Because exchange rate and ocean freight may be changed in near future, so the price is only valid for 15 days. Please confirm the price again with our company before placing the order, thanks.

1, Attached parts and tools put into standard export box.

2, Truck mounted crane will be cleaned and covered with wax before delivery.

3, Truck mounted crane will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.

5, Some small mini cargo truck can be put into container according to its overall dimensions.
