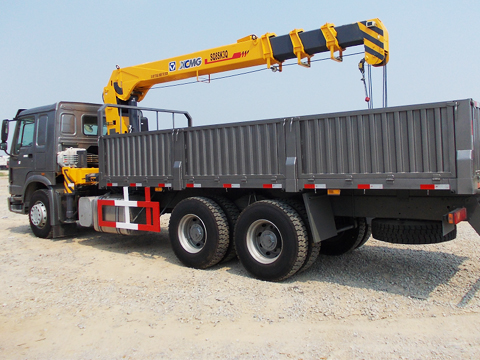

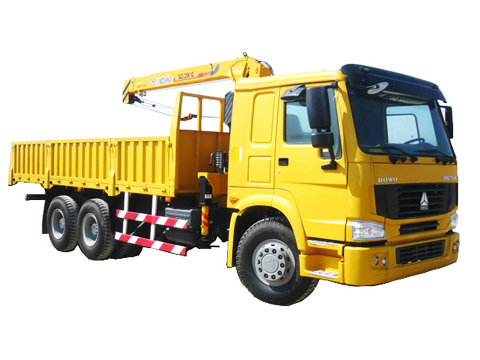

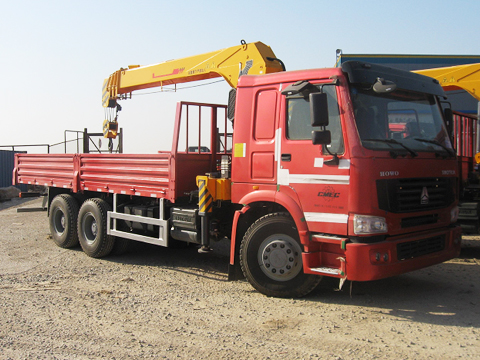

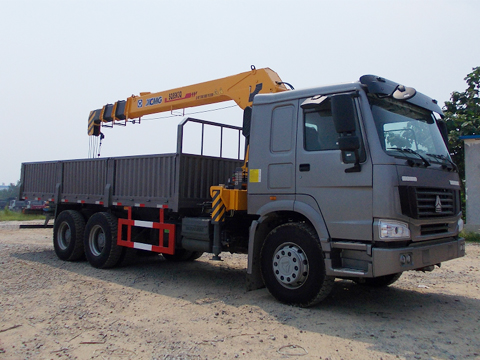

Sinotruk Howo Lorry Truck with 5 ton Streight Arm Crane
Sinotruk Howo Lorry Truck with 5 ton Streight Arm Crane
Sinotruk Howo Lorry Truck with 5 ton Streight Arm Crane
Sinotruk Howo Lorry Truck with 5 ton Streight Arm Crane
Email

Sinotruk Howo Lorry Truck with 5 ton Streight Arm Crane

● Application of Sinotruk Howo Lorry Truck with 5 ton Streight Arm Crane

1. Truck mounted crane (also called lorry mounted crane, truck mounted boom lift, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck.

2. Used to lift the cargo, load, transport and unload heavy stuff.

● Advantages of Sinotruk Howo Lorry Truck with 5 ton Streight Arm Crane

1. Famous brand chassis;

2. Spare parts can be supplied all the time;

3. OEM ability, can design porduct as per your request;

4. SINOTRUK engine with powerful performance.

● Features of Sinotruk Howo Lorry Truck with 5 ton Streight Arm Crane

1. XCMG straight arm type crane;

2. Unique design, small volume, low noise;

3. Main hydraulic parts are international technology, stable and reliable;

4. Strong lorry truck box.

● Details Specification of Sinotruk Howo Lorry Truck with 5 ton Streight Arm Crane

Sinotruk Howo Lorry Truck with 5 ton Streight Arm Crane

General

Vehicle Brand

Chassis Brand

Sinotruk HOWO

Overall Dimension

9200 x 2500 x 3800 mm

GVW / Kerb Weight

25,000 kg / 12,870 kg

Cab

Cab Capacity

Air Conditioner

Air conditioner is Equipped

Engine

Fuel Type

Engine Brand

Sinotruk Engine

Power

266 Hp (196 KW)

Displacement

9726 ml

Emission Standard

Euro II

Chassis

Drive Type

Transmission

10 - speed forward, and 2 reverse

Wheelbase/No. of axle

4300+1400 mm / 3

Tyre Specification

11.00-20

Tyre Number

10 tyres and 1 spare tyre

Max Speed

102 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

Crane Type

Telescopic type

Max Lifting Capacity

5 Tons

Crane Capacity

5000 kg @ 2.5 m  2800 kg @ 3.62 m
1500 kg @ 6.05 m 1100 kg @ 8.5 m

Max Lifting Height

8.5 m

Slewing Angle

360°all rotation

All other standard accessories

Tool kit, English manual

● Optional

1. Knuckle boom crane.

2. Hydraulic tipper box.

3. Box thickness according to requirement.

4. Box height could be nominated.

● Packing

1, Attached parts and tools put into standard export box.

2, Truck mounted crane will be cleaned and covered with wax before delivery.

3, Truck mounted crane will be covered by waterproof cloth at the departure port.

4, Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.
