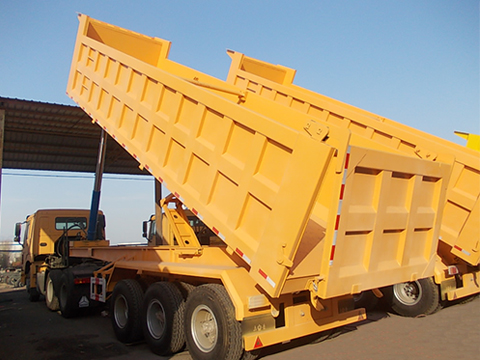

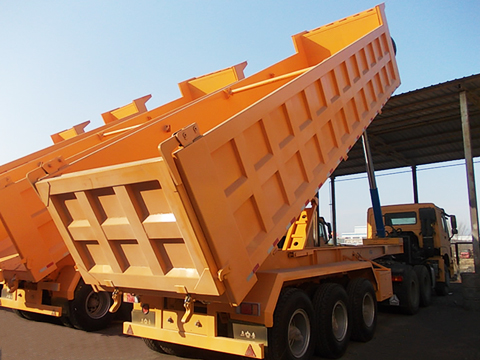

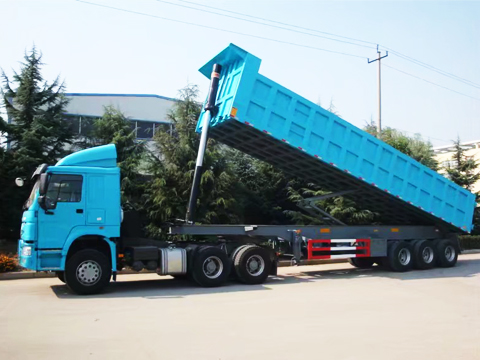

3 Axles 40 Ton Dump Semi Trailer
3 Axles 40 Ton Dump Semi Trailer
3 Axles 40 Ton Dump Semi Trailer
3 Axles 40 Ton Dump Semi Trailer
Email

3 Axles 40 Ton Dump Semi Trailer for Sand Stone Mental Transport

● Application of 3 Axles 40 Ton Dump Semi Trailer

1. Transport sand, sandy loam, gravel, stone.

2. Also can transport coal, base rock, clay, construction material and so on.

● Advantages of 3 Axles 40 Ton Dump Semi Trailer

1. Top brand axles;

2. Spare parts can be supplied all the time;

3. OEM availability; can design the truck as per your request;

4. 24 Hours online after-sale service.

● Features of 3 Axles 40 Ton Dump Semi Trailer

1. Hydraulic system: A set of HYVA Brand cylinder;

2. To all the Vehicle parts, we do shot peening;

3. The suspension adopts stamping rigid suspension which is made by independent steel plate and bed made of tandem leaf spring and suspension bearing;

4. The longitudinal beam is welded by automatic tracking submerged arc welding machine.

● Details Specification of 3 Axles 40 Ton Dump Semi Trailer

Model

Tipper Semi Trailer

Dimensions

11280×2495×3970mm (Outside Dimension)10500×2300×1700mm (Inside Dimension)

Curb weight

15.6 T

Loading capacity

37 m3 or less than 80 tons

Side wal

6mm Q235 steel

Bottom

8mm Q235 steel

Lifting system

Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder

Kingpin

JOST 2.0/3.5 inch

Landing gear

JOST D200T or equivalent

Platform

3mm thick checkered plate

Twist locks

4, 8, or 12

Main beam



Material

Q345B steel, Height: 500mm. Top flange: 14mm, Web: 8mm, Bottom flange: 16mm

Side beam

16mm or 18mm steel channel

Suspension

Germany/America type mechanical, or air suspension

Spring leaf

90mm x 13mm x 10 layers, or 100mm x 12mm x 12 layers

Axles

16T*3 Axles, FUWA/BPW/BP Brand

Tires

12.00R22.5/31580R22.5

Rim

9.00-22.5/9.75-22.5

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks

ABS

Optional

Valve

WABCO

Lighting

LED

Electrical

24V

Socket

7 pin socket

oolbox

1m x 0.5m x 0.5m

Painting

Sand blasting, 1 coat of anti-corrosive prime, 2 coats of painting

● After-sale Service

1. Some maintenance spare parts wil be supplied freely when delieverying truck.

2. Main parts, such as, axle will be warrantied for 6 months.

3. Spare parts will be supplied at factory cost price, freight will be born by your side.

4. Recordes will be established for each trucks and can supply any parts in future.

● Packing

1. Nude Packing (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation).

2. By Flat Rack Container(length not pass 12meter).
