Odel Name |

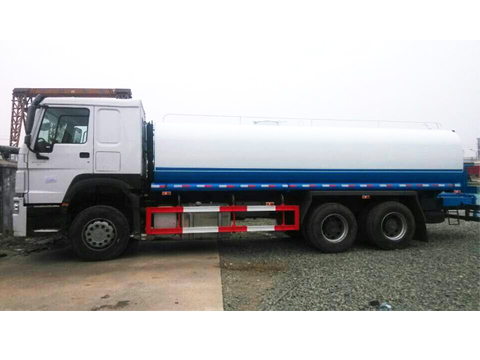

Sinotruk HOWO 6x4 Water Truck |
Driving Type |
6*4, left hand drive |
Weights |
Payload (kg) |
30000 |
Curb weight(kg) |
11970 |
Dimensions |
Wheelbase(mm) |
4325+1350 |
Overall Dimension(mm) |
9320*2496*3200 |
Water tanker size |
20000L |
Max speed(km/h) |
90 |
Engine |
Engine model |
WD615.92 (266HP) |
Engine type |
Diesel 4-storke, Inter-cooling, water-cooling, turbo-charging. |
No. of cylinders |
Straight-6 cylinders |
Displacement(L) |
9.726L |
Max. output (kw) |
196kw/2200rpm |
MaxTorque(N*m)/Rev(r/min) |
1100/1100-1600 1100/1100-1600 |
Drive Line |
Transmission |
Model: HW13710,
Speed range:10 forwards, 2 reverse gear, manual operation |
Steering |
ZF8098 Power steering |
Brake system |
Service braking,dual circuit compressed air brake; Parking brake(hand brake); spring energy air cut brake.ratio: 5.73. |

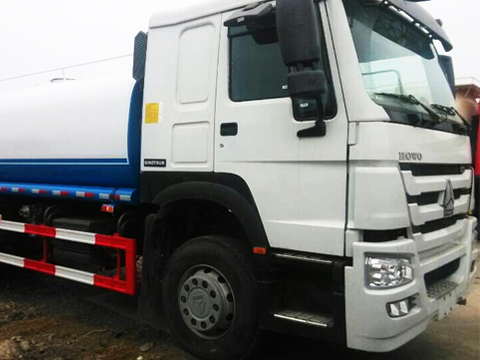

Cab |
Cab |
HW76 |
Standard configuration |
Air container, oil pressure gauge, air pressure, fule level indicator, battery charge indicator, Temperature indicator, thermometer, Hopper drive switch for operation and so on. |
Axle |
Front axle |
HF7(7tons) |
Rear axle |
MCY13 |
Tire specification |
Tire specification |
12.00-20 standard tire 12.00-20 |
Tire quality |
10 tires+1 spare tire |
Box information |
Water tanker material |
Of high quality carbon steel (Q235) |
Introduction 介绍 |
1. Suction≥7m Sprinkler width≥14m Range≥28m
2. with front spout, back spill and side spout function

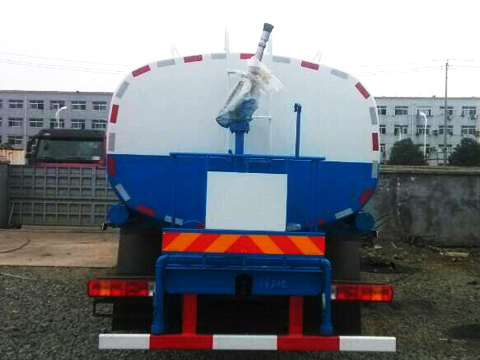

3. with the working platform at the back, wich can be installed green high-pressure water spray gun. (The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)

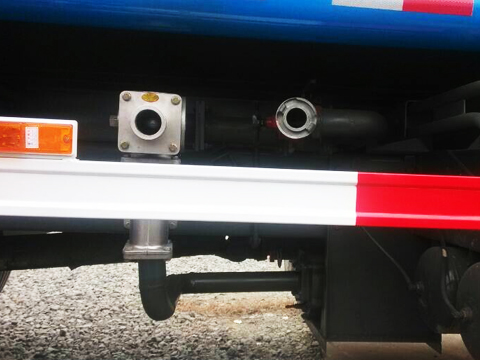

4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. |
Sprinkling area(m) |
»14m |
Vertical suction |
»7m |
|
Watering pressure |
250-450Mpa |
Pump style |
Self-priming centrifugal pump |
|
Manhole |
Man way access hole on top of tank;1 units DN500mm manhole |
Front spray function |
Front spray bar with fan sprayer on both sides, spray range: »28m |
Man walk way |
With skid resistance man walk way on top of tank. |
Water pump |
Water pump model: CLW80QZF-60/90N (N/S)
Water pump flow rate(L/m): 60m3/h
Head of delivery(m): 90m
Self-priming function(min/4m): 1.56
Efficiency(%): 95%
Related rotate speed(r/min)1180
Matched power(kw): 22 |
Other |
Electric system |
VDO electric system, 24V, negative grouped |
Tool |
Standard equipment |
