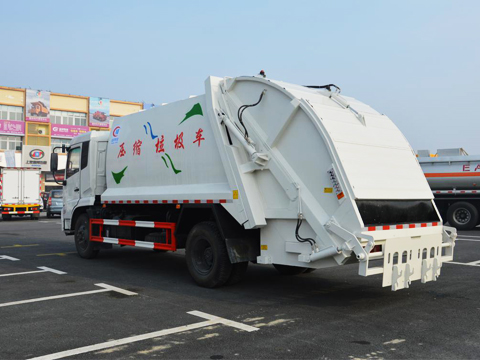

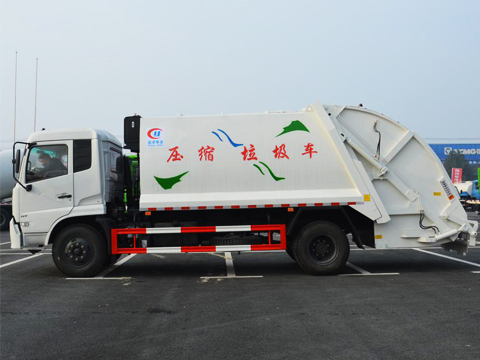

Dongfeng 14 Cubic Meter Compactor Garbage Truck
Dongfeng 14 Cubic Meter Compactor Garbage Truck
Dongfeng 14 Cubic Meter Compactor Garbage Truck
Dongfeng 14 Cubic Meter Compactor Garbage Truck
Email

Dongfeng 14 Cubic Meter Compactor Garbage Truck

● Application of Dongfeng 14 Cubic Meter Compactor Garbage Truck

1. Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle.

2. Collect and transport municipal solid waste.

● Advantages of Dongfeng 14 Cubic Meter Compactor Garbage Truck

1. Top brand chassis in China;

2. Spare parts can be supplied all the time;

3. OEM ability, can design porduct as per your request;

4. Top brand crane will be configurated.

● Features of Dongfeng 14 Cubic Meter Compactor Garbage Truck

1. Equipped with special collection box;

2. Garbage body use frame design, elegant, strong structure, large effective capacity;

3. Achieve the function of two-way garbage compression;

4. Control system: manual or automatic.

● Main Characteristic of Dongfeng 14 Cubic Meter Compactor Garbage Truck

1. Can choose 240L (single bin、double bins) or 360L, 660L, 1100L standard bin lifting and turnover mechanism, can also choose ground hopper and other kinds of loading mechanism;

2. With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck, very convenient and efficient;

3. With working device of emergency braking stop button;

4. Garbage body use frame design, elegant, strong structure, large effective capacity.

5. Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.

6. Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5, the garbage can reach more then 600～800kg/m3 after compression.

● Details Specification of Dongfeng 14 Cubic Meter Compactor Garbage Truck

Main specifications

Product model / name

CSC5161ZYSD Compression Garbage Truck.

Gross weight(Kg)

16000

Driving type

4*2

Payload (Kg)

6000

Overall dimension (mm)

8500*2480*3150

Curb weight(Kg)

9805

Cab seats (man)

3

Approach/departure angle (°)

19/9

Front/rear hang(mm)

1430/2570

Axle No.

2

Wheelbase (mm)

4500

Axle load(Kg)

6000/10000

Max speed(Km/h)

90

Chassis specifications

Chassis model

DFL1160BX2

Manufacture

Dongfeng motor company

Brand name

Dongfeng

Overall dimension (mm)

7790*2370*2760

Tire specification

10.00R20

Tires No.

6+1

Steel spring number

7/9+6

Front track(mm)

1880

Fuel type

Diesel

Rear track(mm)

1800

Emission standard

Euro Ⅲ

Gear box

6 forward

Cab

D530 one row and half flat cab, electric window lifter, central lock actuator, channel dashboard, with air conditioning.

Engine  model

Engine manufacture

Displacement(ml)

Power(Kw)

B190 33

Dongfeng cummins engine co., ltd.

5900

140

Performance

Body capacity (m3)

14

Hopper capacity(m3)

1.8

Compression cycle time (S)

30

Unload garbage time (S)

40

Control system

Manual + Automatic

● Packing

1. Attached parts and tools put into standard export box.

2. Garbage compactor truck will be cleaned and covered with wax before delivery.

3. Garbage compactor truck will be covered by waterproof cloth at the departure port.

4. Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers requirements.
